Veterinary DR Imaging System

Feartures：

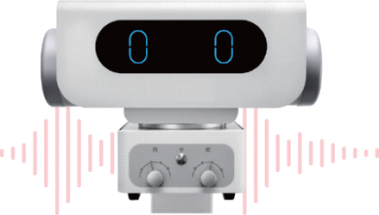

       High-frequency Inverter High-voltage  Generator                                                      Voice-controlled    Exposure

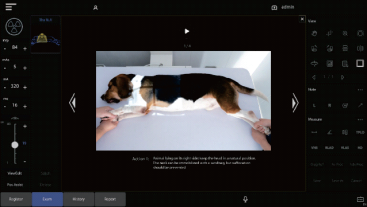

               Professional Positioning  Guidance                                                             One-key Power On  and Off

              Single-operator Workflow，Save manpower

                   and improve efficiency

Specification:

    . Power of high-frequency high-voltage generator: 20/5OkW

    . Tube voltage and current range:40~150kV, 10mA~630mA
    . Rated tube voltage: 150KV
    . Focalspot: 0.6mm/1.2mm; Anode target angle:12; Anode rotation speed: 2800 rpm

    . Heat capacity of tube assembly: 30OkHU
    . Control mode: Fixed/Bed surface bidirectional floating (mechanical brake, lateralmovement >100mm, longitudinal movement >200mm)
    . SID (Source to Image Distance): 1000mm (fixed)

    . Tube fixing method: Side-mounted, anode downward

    . Flat Panel Detector: Support wireless/wired connection,

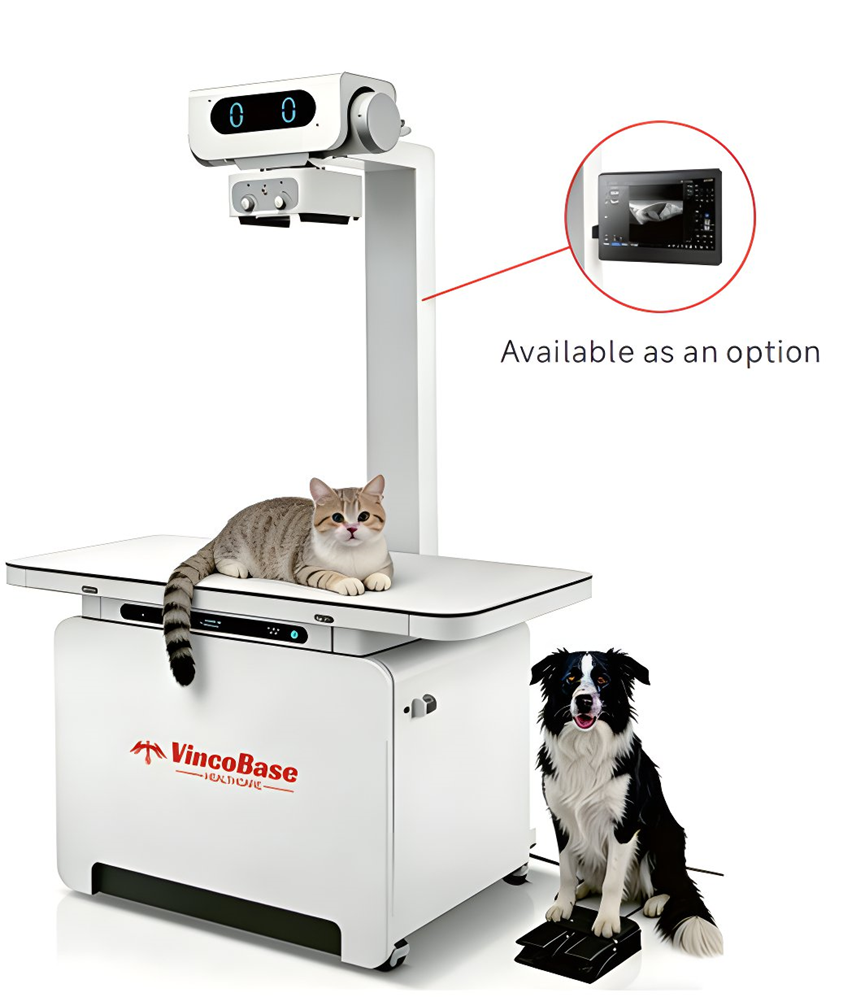

Product Images:
